Bobcat Low Profile Bucket - 74"
Low Profile Bucket - 74"
Bucket, Low Profile - Loaders

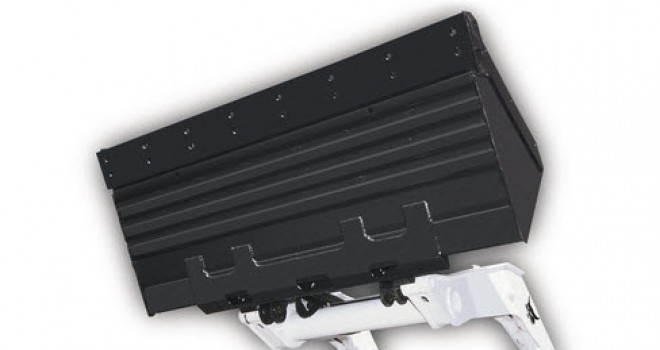

Low profile buckets have a longer bottom than construction/industrial buckets. They offer excellent cutting edge visibility and good bucket breakout force. Low profile buckets are ideal for grading and leveling applications as well as carrying, loading and other material handling. Available grapple attachment makes easy work of hard-to-handle materials.
Top Tasks
- Grading
- Leveling
- Carrying and loading
- Material handling
Bucket Backs Comparison
The back of a bucket is subjected to extreme force as you push into a pile, lift materials and back drag. Which buckets have the most reinforcement in the right places? Compare them in this video.
Bucket Bottoms Comparison
If a bucket bottom isn't built well, the cutting edge will flex or even permanently bow. You need a strong bucket bottom to cut a grade, flatten your work area or scrape material off hard surfaces. See the strong Bobcat bucket bottom and its unique waffle-plate design.
Customization Comparison
With Bobcat low profile and construction/industrial buckets, you can easily add custom options like teeth and grapples using simple tools. With other buckets, you must drill holes or permanently weld those options. Watch how Bobcat offers fast, convenient customization.
Bucket Strength
Your bucket must withstand severe applications. In this test, watch how different buckets react to the forces typically placed upon them by a loader. See which bucket has the least deflection and the most strength.
Dirt Bucket
The standard bucket on smaller Bobcat loaders. Provides excellent breakout force and fair visibility. Similar to the general purpose bucket, but with a shorter bottom.General Purpose Bucket
Similar in design to a dirt bucket, but with a longer bottom to provide good cutting edge visibility and increased capacity. The standard bucket for Toolcat™ machines and a good choice for low-hour users on some larger loaders.Heavy-Duty and Severe-Duty C/I Bucket
Designed for larger Bobcat loaders and compact track loaders, these buckets feature a higher back and longer bottom than standard C/I buckets and have additional strength in key areas.Fertilizer Bucket
Fertilizer buckets have large capacities and more roll-back range. The greater roll-back allows granular materials to be easily held in the bucket by minimizing spillage over the front edge. Applications include fertilizer and grain handling.Snow/Light Material Bucket
These are large capacity buckets for loading and handling various light materials such as snow and mulch. They have high backs to help with pushing snow, and straight sides to penetrate snow and mulch piles.Construction/Industrial Bucket
Ideal for everything from tough digging to material handling. Construction and Industrial buckets offer fair cutting edge visibility and excellent bucket breakout force for better digging and easier bucket filling. Bolt-on grapple attachment adds to versatility.
| Model | Low Profile Bucket - 74" |
| GENERAL | |
| Operating Weight | 533 lb |
| Length | 35.5 in |
| Width | 74 in |
| Height | 21.5 in |
| Number of Teeth | 8 Bolt-on |
| BUCKET SPECS | |
| ISO Heaped Capacity | 17.6 ft³ |
| ISO Struck Capacity | 13 ft³ |
| Predrilled For | Bolt-on Edges or Teeth |
