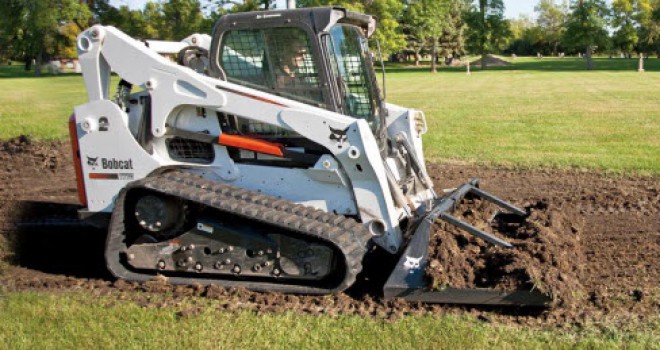

Bobcat T770
Bobcat T770
Compact Track Loaders
With 11 ft. of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs. The vertical lift path allows you to easily place cargo and tackle demanding tasks. The T770 is an interim Tier 4 model.
| Model | Bobcat T770 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower |
92 hp
|
| Turbocharged Engine |
Optional
|
| PERFORMANCE | |
| Rated Operating Capacity (SAE) |
3,475 lb
|
| Operating Capacity (50% of Tip) |
4960 lb
|
| Tipping Load |
9929 lb
|
| Operating Weight |
10465 lb
|
| Travel Speed |
6.6 mph
|
| Travel Speed (2-speed option) |
10.7 mph
|
| Ground Pressure (Rubber) | 4.2 psi |
| CAPACITIES | |
| Fuel Tank | 44.1 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers |
3,500 psi
|
| Auxiliary Std Flow |
23 gal/min
|
| Auxiliary High Flow |
36.6 gal/min
|
| DIMENSION | |
| Length |
141.6 in
|
| Length without Attachment |
114.3 in
|
| Length with Standard Bucket |
141.6 in
|
| Width |
78 in
|
| Width (with bucket) |
80 in
|
| Height |
81.3 in
|
| Height with Operator Cab |
81.3 in
|
| Height to Bucket Hinge Pin |
132 in
|
| Reach @ Maximum Height |
33.6 in
|
| Turning Radius |
88 in
|
| Length of track on ground |
63.7 in
|
| Track Width |
17.7 in
|
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Horn | Standard |
